Framing Coil Nailer

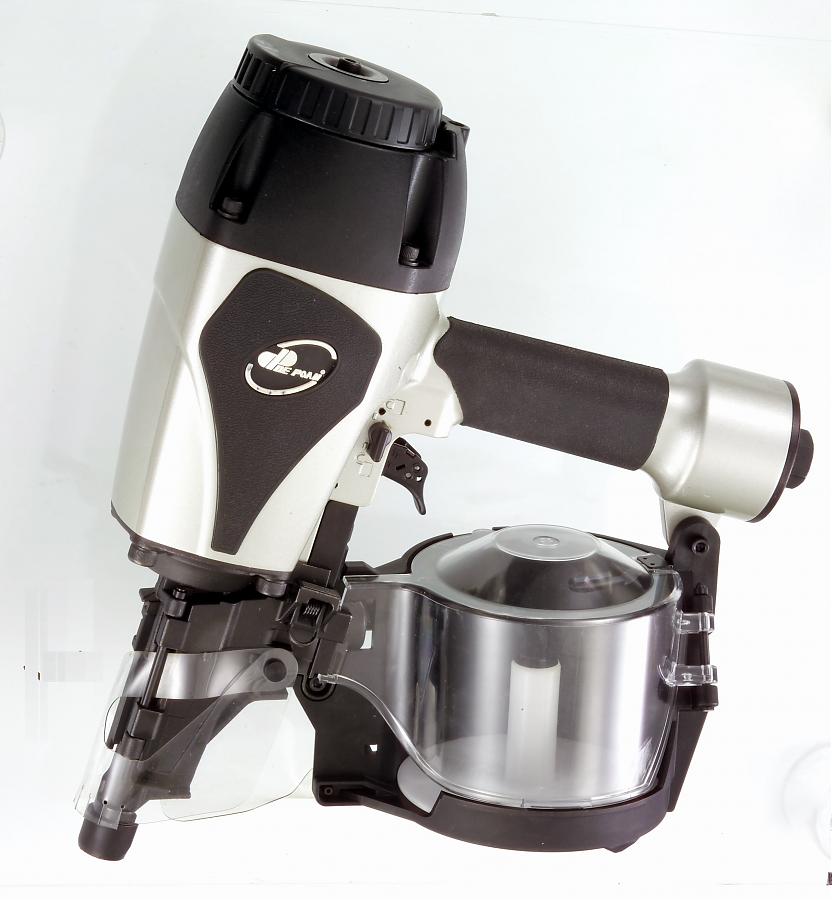

Coil Nailer (CN90)-Model# 7501

Part List

Download

Specification:

Model	Collation Type	Gauge	Length	Shank Diameter	Wire Weld & Plastic Collation	Weight	Dimensions (HWL)	Load Capacity
7501	15 DEG.	10~13	45MM~90MM 1-3/4"~3-1/2"	2.5MM~3.8MM (0.099"~0.15")	6MM~7.9MM (⊕ 0.236"~0.311")	3.1 KG (6.8 LBS)	305MM128MM373MM	150~300 NAILS

Model

Collation
Type

Gauge

Length

Shank
Diameter

Wire Weld
&
Plastic Collation

Weight

Dimensions
(H*W*L)

Load
Capacity

7501

15 DEG.

10~13

45MM~90MM

1-3/4"~3-1/2"

2.5MM~3.8MM
(0.099"~0.15")

6MM~7.9MM
(⊕ 0.236"~0.311")

3.1 KG
(6.8 LBS)

305MM*128MM*373MM

150~300 NAILS

Feature:

1 .Magnesium Housing
2. Switchable Trigger
3. Trigger Lock & Dry Fire Lockout
4. Swivel Exhaust Deflector
5. Adjustable Nail Depth Control
6. No-Mar Pad

Applications:

1. Floor And Wall Framing
2. Sheating
3. Making Pallets, Box And Crates
4. Decking And Siding

Back
